Design Database
Connecting manual Rhino modelling to an Excel-based production database through Grasshopper automation.
Visualising automation steps

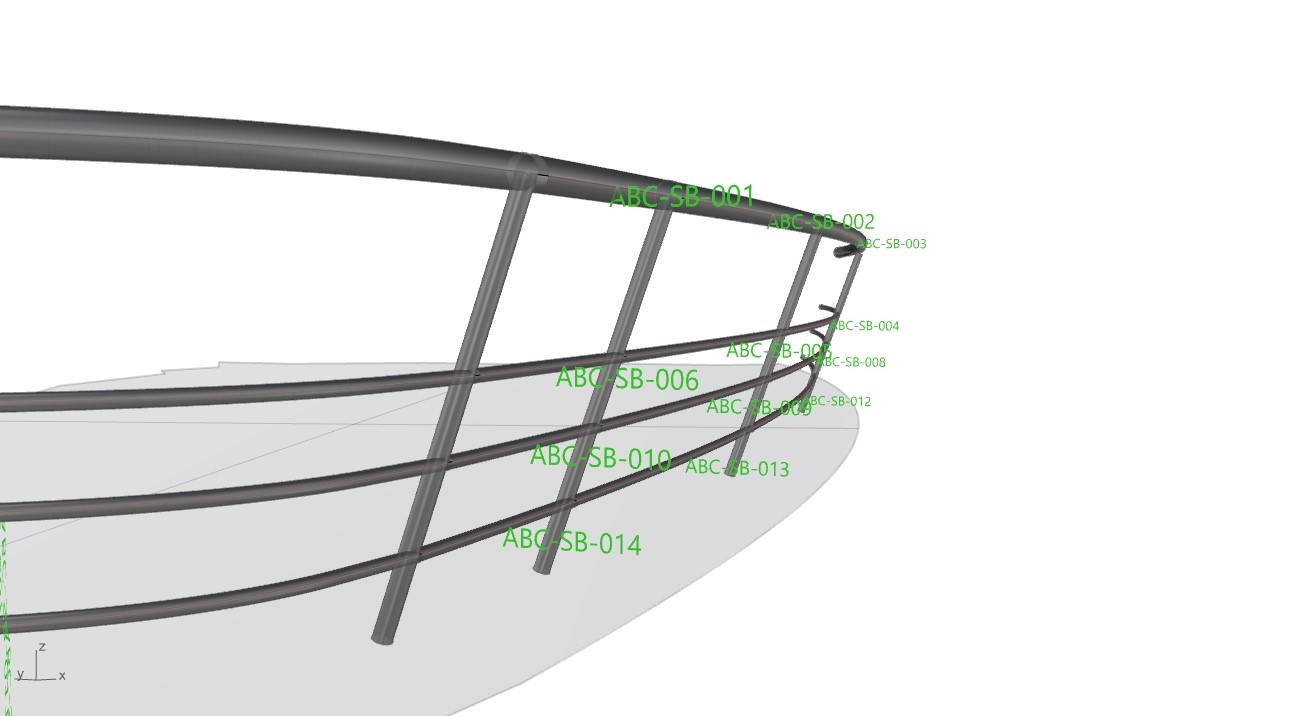

Manual 3D modelling remains an essential part of ship design. At the same time, the industry is increasingly embracing automation to streamline and accelerate the design-to-production process. This demo shows how a 3D design can be systematically translated into a structured database of objects and their corresponding production specifications.
Because automated workflows often conceal the intermediate steps, a visual demonstration was developed to communicate how the script breaks down and processes the design tasks. While the demo focuses on the core workflow, the complete script incorporates additional processing stages and generates multiple output formats, including Excel tables, text files, and images.
Grasshopper to Excel / workflow demo

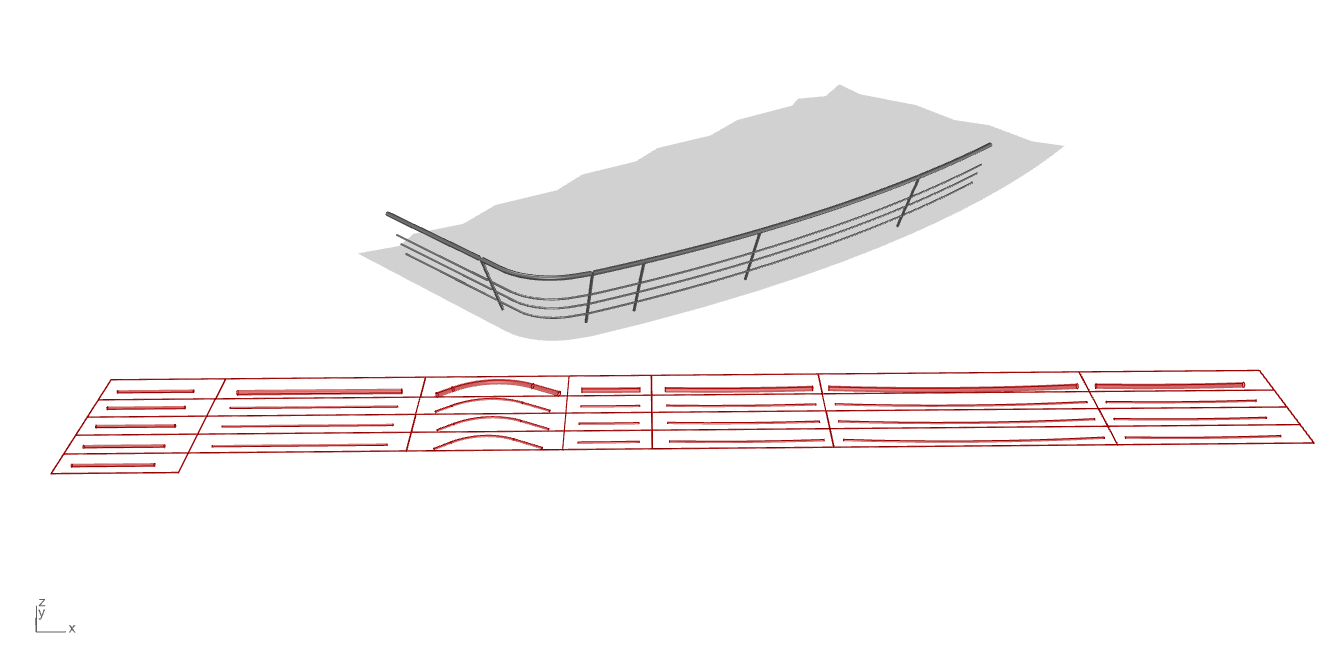

The system translated geometric information into structured production data and automated several downstream outputs. Due to confidentiality restrictions, the original geometry and production data have been replaced with a simplified demonstration of the computational workflow.
